Connect Your Drums to Android Phone or Tablet

Play anywhere with Beatlii on your Android device. Follow these steps to connect your electronic drums, select your module, and set up sound.

USB is recommended for the most reliable and lowest-latency connection. You can also connect via Bluetooth MIDI if your module supports it.

Before You Start (Quick Checklist)

  • Beatlii installed on your Android phone or tablet

  • Power on your drum module

  • A USB-MIDI/data cable (charging-only cables won’t work)

  • The right adapter:

    • Most modern Android → USB-C OTG adapter + USB-B cable, or a direct USB-C → USB-B OTG cable

    • Older Android devices → Micro-USB OTG adapter + USB-B cable

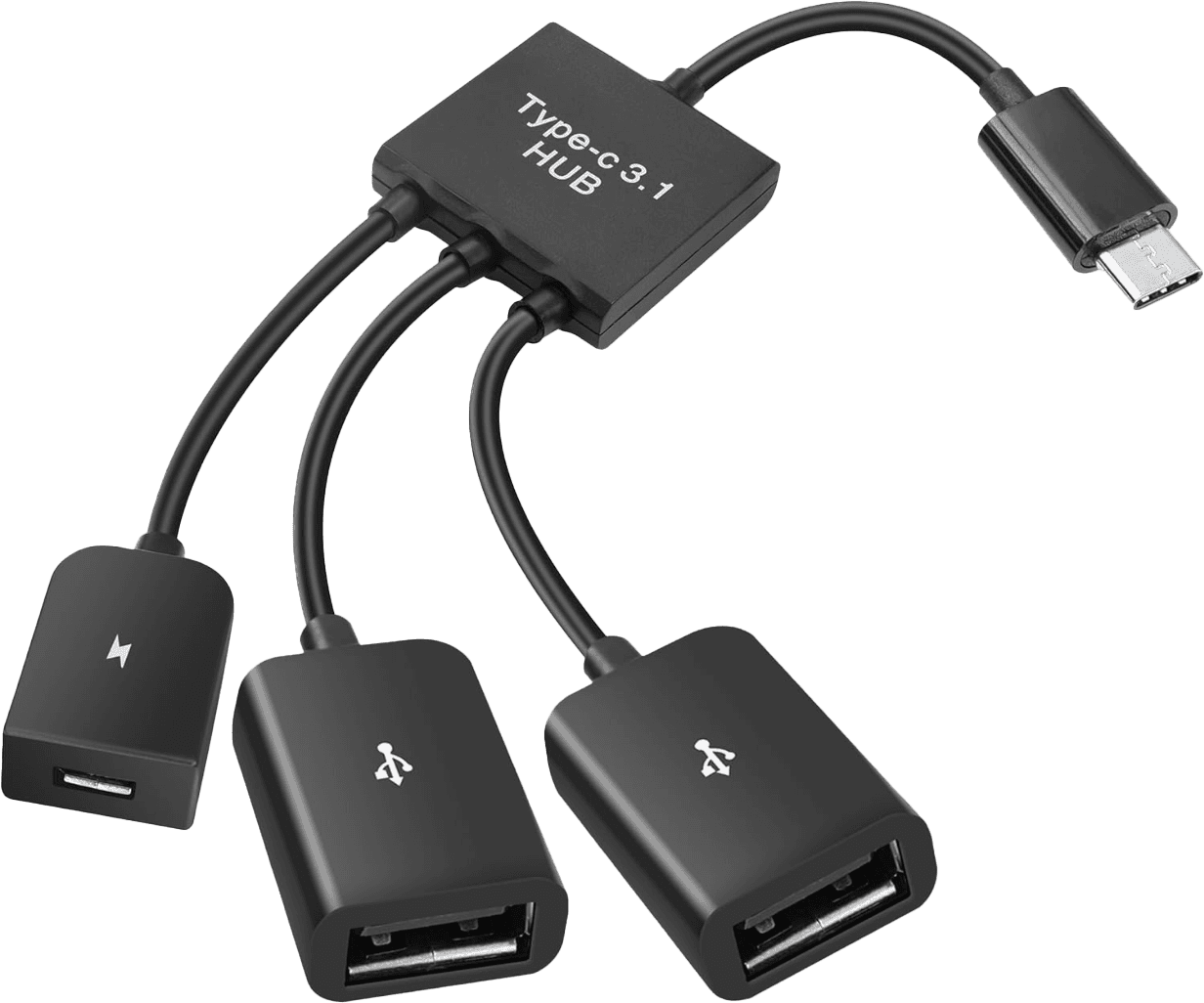

  • Keep cables short and plug directly into the device (avoid hubs)

  • Update Android to the latest version

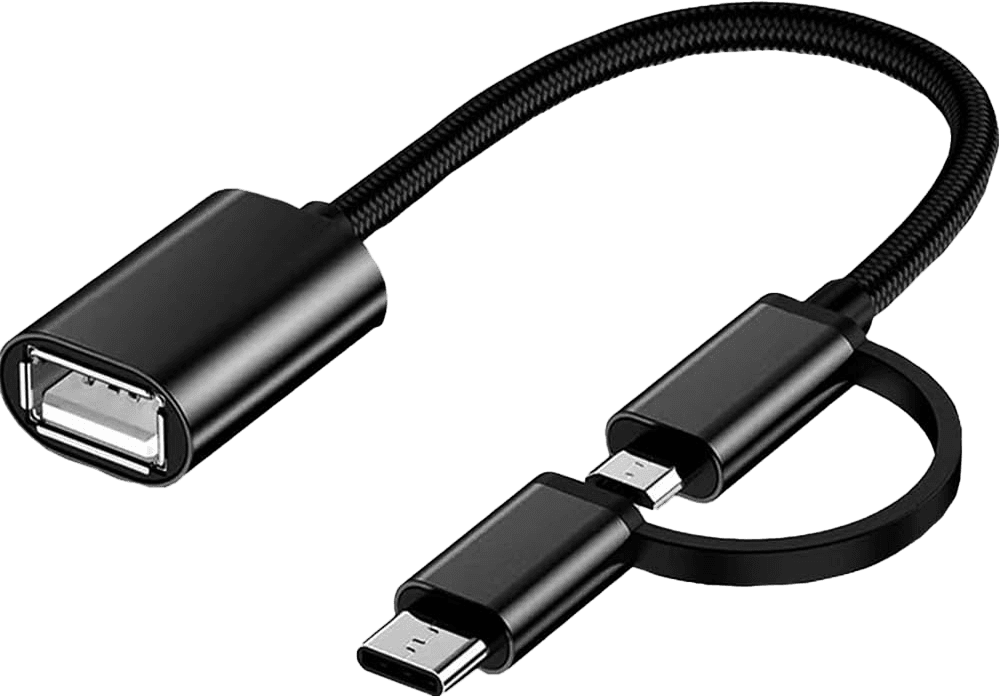

USB-C OTG adapter
Micro-USB OTG adapter

Connect With USB (Recommended)

1) Plug In Your Module

  • Connect the USB-B end to your drum module

  • Connect the other end to your Android device using the correct OTG adapter/cable

2) Allow USB Access

  • When prompted on your Android device, tap Allow to give Beatlii permission to access the USB device

  • If you see a USB options menu (in the notification shade), select MIDI

3) If No Device Is Found

  • Try another USB-MIDI/data cable (some are charge-only)

  • Try a different OTG adapter or port

  • Unplug/re-plug the cable and accept the permissions prompt again

  • If your module has multiple USB modes (e.g., Roland “Vendor” vs “Generic”), switch to Generic USB-MIDI

  • Ensure the connection is MIDI, not audio. Beatlii requires a MIDI connection to recognize your electronic drum kit (audio connections alone won’t work)

4) Select Your Kit in Beatlii

  • Open Beatlii → follow the device flow → Electronic Drum Kit

  • If your model isn’t auto-detected, open Drum Module Presets, pick your model (or a similar one from the same brand), and connect

Connect Over Bluetooth (Wireless)

Bluetooth is convenient but adds some latency compared to USB. Works only if your module supports Bluetooth MIDI.

Pairing Steps

  1. Put your drum module in Bluetooth pairing mode

  2. On your Android device, open Settings → Bluetooth and pair your module
    OR pair directly from Beatlii’s Bluetooth device picker

  3. Open Beatlii and choose Continue with Bluetooth, then select your module

Tip: If your kit doesn’t appear, toggle Bluetooth off/on and restart Beatlii. Stay within 1–2 meters during pairing.

Important Note

  • Some kits (like Alesis Nitro Pro/Max) don’t support Bluetooth MIDI and must connect via USB.

  • Compatible drum kits with Bluetooth MIDI (click here)

Set Up Your Sound (Low Latency)

  • USB provides the lowest latency, use it when possible

  • In Beatlii’s Audio Settings, adjust buffer size and latency compensation until it feels responsive

  • Avoid Bluetooth headphones or speakers. Use wired ones. Bluetooth audio adds extra latency

  • Close background apps and disable Battery Saver while you play to keep audio stable

Latency Troubleshooting Guide

Missing Module (Presets)

  • Try another module from the same brand (many share the same MIDI mapping)

  • If that works, you can play immediately

  • Otherwise, create a Custom MIDI Setup in Beatlii

  • If your module isn’t listed, email the brand & model to support@beatlii.com and we’ll work on adding it

MIDI Mapping (If Hits Trigger Wrong Sounds)

  • If toms trigger cymbals (or similar issues), you may need to adjust the MIDI mapping

  • First, try a factory reset on your drum module

  • If needed, create a Custom MIDI Setup in Beatlii:

    • Hit each pad on your kit

    • Assign it to the correct sound in Beatlii

    • Save your setup for next time

Still Having Trouble?

  • Restart your drum module and your Android device

  • Make sure Android is updated

  • Double-check cables/adapters and confirm the module is powered on

  • If issues persist, test with another cable or OTG adapter

  • Contact us at support@beatlii.com for more help

Contact Us
